Presentation Generation End‑to‑End Flow and API Map

​

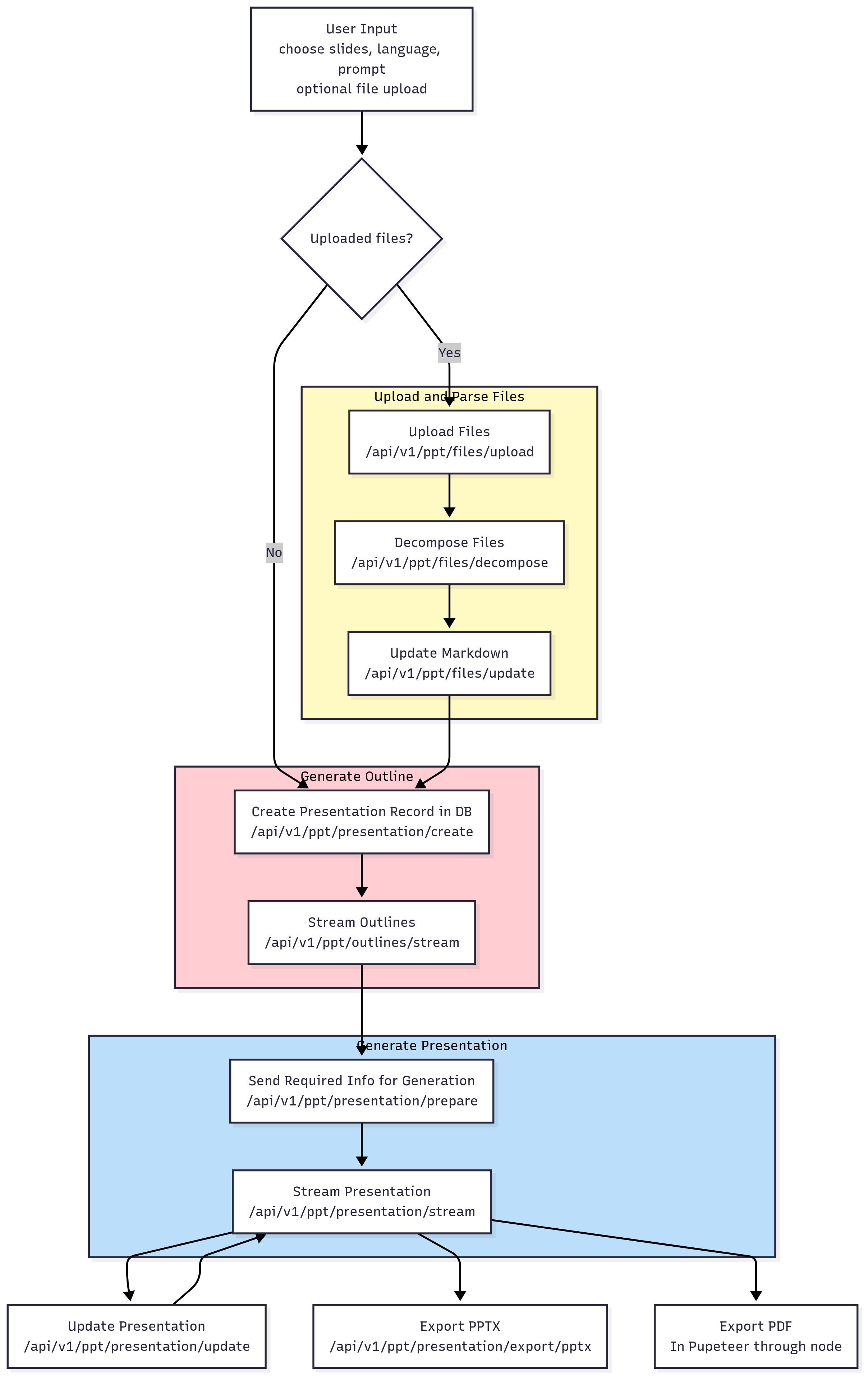

Overview

• Upload and parse files (optional)
• Generate outline
• Generate presentation
• Iterate and export

​

Core user entry point

• User supplies slide count, language, and a prompt. They may also upload one or more files. The flow then follows one of two paths based on whether files are uploaded.

​

Phase 1 — Upload and parse files (optional) Used only when the user attaches documents.

• Upload Files (/api/v1/ppt/files/upload)
  • Stores a temporary copy of each uploaded file.
• Decompose Files (/api/v1/ppt/files/decompose)
  • Converts each file into Markdown so it can be previewed and used as a content source.
• Update Markdown (/api/v1/ppt/files/update)
  • Persists edits the user makes to the extracted Markdown in the document preview page. Output of this group: cleaned, user‑approved Markdown ready to feed the outline and slide generation steps.

​

Phase 2 — Generate outline

• Create Empty Presentation (/api/v1/ppt/presentation/create)
  • Creates a presentation record in the database with the prompt, n_slides, language, and any Markdown file paths. Returns a presentationId that is used throughout the rest of the flow.
• Stream Outlines (/api/v1/ppt/outlines/stream)
  • Streams a slide‑by‑slide outline. The outline can be formed from the uploaded Markdown chunks, LLM‑generated content, or a mix; web grounding may be enabled or not. Result: a structured outline attached to presentationId that defines the content plan for each slide.

​

Phase 3 — Generate presentation

• Prepare Presentation (/api/v1/ppt/presentation/prepare)
  • Accepts the user’s selected template and chooses a layout for each slide prior to generation.
• Stream Presentation (/api/v1/ppt/presentation/stream)
  • Generates slides and assets and streams them to the UI as they are created. This is the main content generation loop. Result: a live, streaming build of slides with text, structure, and assets based on the outline and chosen template/layouts.

​

Iterate and export

• Update Presentation (/api/v1/ppt/presentation/update)
  • Saves user edits to slide content. You can call this repeatedly while previewing or after streaming has completed.
• Export PPTX (/api/v1/ppt/presentation/export/pptx)
  • Creates a PPTX from the structured shapes data produced during generation (using the presentation‑to‑pptx‑model NextJS endpoint under the hood).
• Export PDF
  • Creates PDF by screenshotting the slide in an Pupeeter instance through node.
